- Tube fiber laser cutting machine is for cutting various pipes and channel steel.
- It can cut surface and cut 360°in U type steel, C type steel, H-beam, rectangular tube, round tube, horseshoe tube and other special -shaped tubes with infinite rotary cutting .
RAYMAX
RX-TM Tube Fiber Laser Cutting Machine
Description
INQUIRE NOW
PRODUCT DISPLAY
RAYMAX
PRODUCT CATALOG
Download RAYMAX product manual right now.For product details and side-by-side comparisons.
preview download-
1
Laser Source
The fiber laser generator adopts MAX fiber source, with stable performance, suitable for 24 hours continuous operation, meeting the requirements of laser industrial production without interruption
More Options
Optional : IPG fiber source, Raycus fiber source -
2
Swiss Raytool Laser Cutting head
Swiss imported raytool laser cutting head with autofocus
More Options
High cutting speed and best cutting quality
Easier faster protective glass cartridge change
Temperature constant distance control and Scale for setting the focus position in lateral and vertical position -
3
Transmission System
Work with HIWIN guide rail, gear rack transmission system improve cutting speed compare to ball screw transmission. Also can keep good stability and high precision when do cutting.
-
4
Double Temperature Double Control System
Fiber lasers above 500W need to be equipped with a fiber laser chiller. The higher the power, the higher the cooling capacity of the fiber laser chiller.
-
5
Stable and Solid Bed
Strictly make table with hardening, tempering and annealing treatment to ensure no deformation during long time production. Body welded sheet thickness 12mm. Max can load 500KG metal sheet, no distortion after long time use.
-
6
Control Cabinet
We use Cypcut, which is the most famous brand in this line.
More Options
Support multiple languages, simple and clear, easy to operate. -
7
Japan's Fuji or Yaskawa Servo Drive
Bear 3 times rated torque load, high speed good performance, strong overload protection
-
8
Self-centering Chuck
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable;
Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Application
The laser cutting machine can cut most metal materials with a cutting thickness of up to 50mm.
Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.

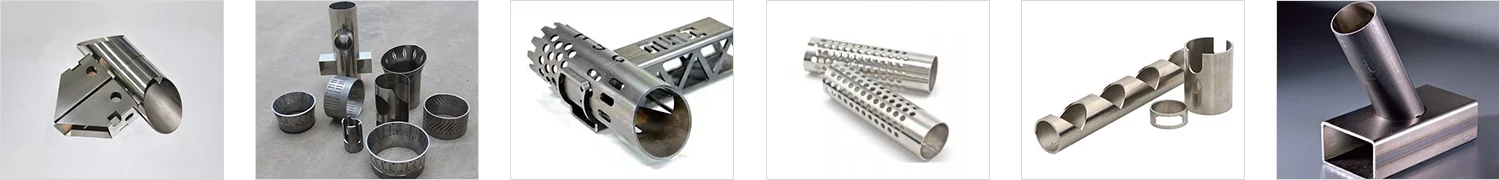

Cutting Sample
